CONFIGURATIONS
The Quantum Cinematic XDR Micro LED Displays are available in 16x9 Standard Widescreen configurations like TVs but can also be configured for Cinemascope Ultra Widescreen typically used in Theater Room Applications, as well as Custom Configurations for Sportsbooks, Video Gaming, and Digital Art Wall Displays.

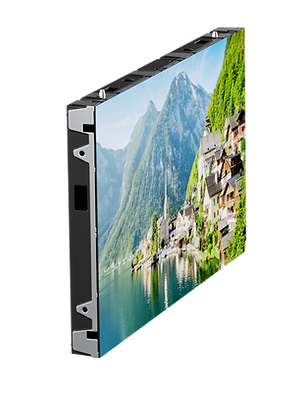

DISPLAY CABINETS
The Quantum Cinematic XDR Micro LED Displays are constructed using Display Cabinets that are 23.6" wide, 13.3" high, and 3.5" deep including rear mounting structure. This modular design allows customization of the height, width, and shape of the overall display.
MICRO LED MODULES
MicroLED Modules are magnetically attached to the Display Cabinets and easily removed from the front for servicing and future upgradability. Available pixel pitches are 0.9mm, 1.2mm, 1.5mm, and 2.5mm.
STANDARD
WIDESCREEN
ULTRA
WIDESCREEN
Configuration
5x5
Diagonal Size
135"
Width
9'-10.1"
Height
5'-6.4"
Configuration
6x6
Diagonal Size
162"
Width
11'-9.7"
Height
6'-7.7"
Configuration
7x7
Diagonal Size
189"
Width
13'-9.3"
Height
7'-9"
Configuration
8x8
Diagonal Size
216"
Width
15'-8.9"
Height
8'-10.2"
Configuration
9x9
Diagonal Size
243"
Width
17'-8.5"
Height
9'-11.5"
Configuration
10x10
Diagonal Size
271"
Width
19'-8.2"
Height
11'-0.8"
Configuration
6x5
Aspect Ratio
2.13
Width
11'-9.7"
Height
5'-6.4"
Configuration
7x6
Aspect Ratio
2.07
Width
13'-9.3"
Height
6'-7.7"
Configuration
8x6
Aspect Ratio
2.37
Width
15'-8.9"
Height
6'-7.7"
Configuration
9x8
Aspect Ratio
2.00
Width
17'-8.5"
Height
8'-10.2"
Configuration
10x8
Aspect Ratio
2.22
Width
19'-8.2"
Height
8'-10.2"
Configuration
11x9
Aspect Ratio
2.17
Width
21'-7.8"
Height
9'-11.5"
